Balcony & Podium Joint Movement Challenge
Podiums and balconies are exposed to weathering, UV radiation, pedestrian traffic, and thermal expansion, and are often cluttered with aesthetic finishes, drains, and railings. Ingress of water through joints, tile grout, or perimeter upstands causes unsightly efflorescence, cosmetic ceiling damage, and structural concrete decay.
Application Selection Guidance
For tiled balconies and landscaped podiums, specify Geobit liquid-applied polyurethane (PU) or hybrid polyurea membranes. These systems adapt easily to complex detailing, upstands, and drainage pipes. If tiles are to be laid directly on the waterproofing membrane, use a cementitious bonding bridge or select a compatible tile adhesive. Ensure all expansion joints in the substrate are mapped and mirrored through the tiling layer to accommodate thermal movements.

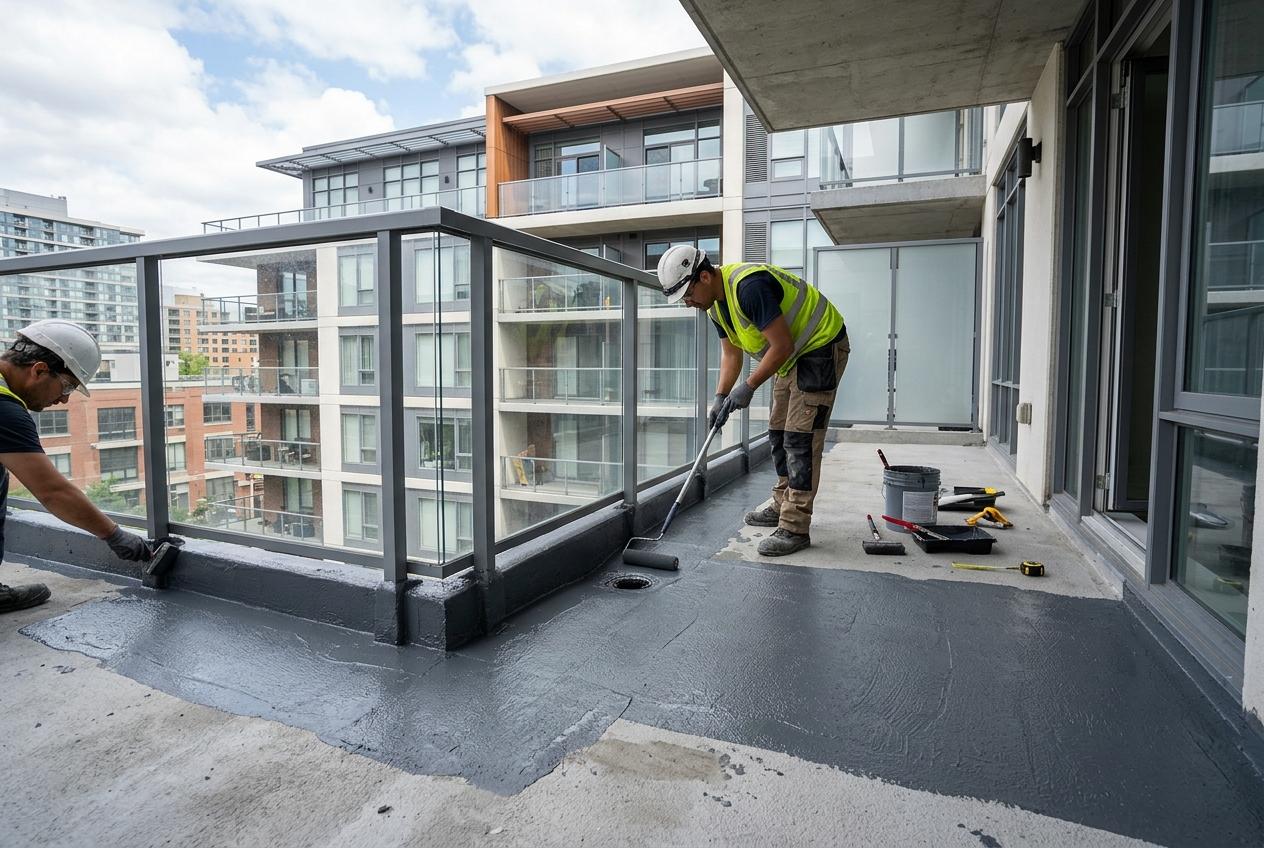

Apply seamless elastomeric polyurethane liquid membrane (Betocoat PU) or 2K cementitious slurry (Betoflex CM 588) across balcony slabs, podium decks, and planter boxes, ensuring 100% seamless continuity up parapet upstands.
Embed high-tensile extruded PVC waterstops (Betostop ICJ/ECJ/IEJ/EEJ) into concrete expansion and construction joints during pouring to stop high hydrostatic water ingress, and reinforce internal corners with fiberglass mesh (Betotec Mesh 65).
Install non-woven needle-punched polyester geotextile filter fabric (Betotec 120-1000 GSM) as a protective cushion and drainage filtration layer above waterproofing membranes and under ballast.
Apply Geobit high-penetration bitumen primer followed by torch-applied APP or SBS modified bitumen waterproofing membranes (Betoflex 4P/5P or 4S/5S, 4mm-5mm thick) with 80mm side laps. Protect the cured membrane assembly using semi-flexible asphaltic or polypropylene protection boards (Betoboard / Betostick PB) prior to backfilling or screed placement.
Seal expansion joints, parapet flashings, and perimeter terminations with high-movement single-component polyurethane joint sealant (Betoseal 1PU, movement +/-25%) or 2-part polysulfide sealant (Betoseal PS PG).
Evidence & Case Studies
Specification Hubs
Matching System Products & Functional Roles
APP Modified Bitumen Membrane - Plain & Mineral-Surfaced
SBS Modified Bitumen Membrane - Plain
